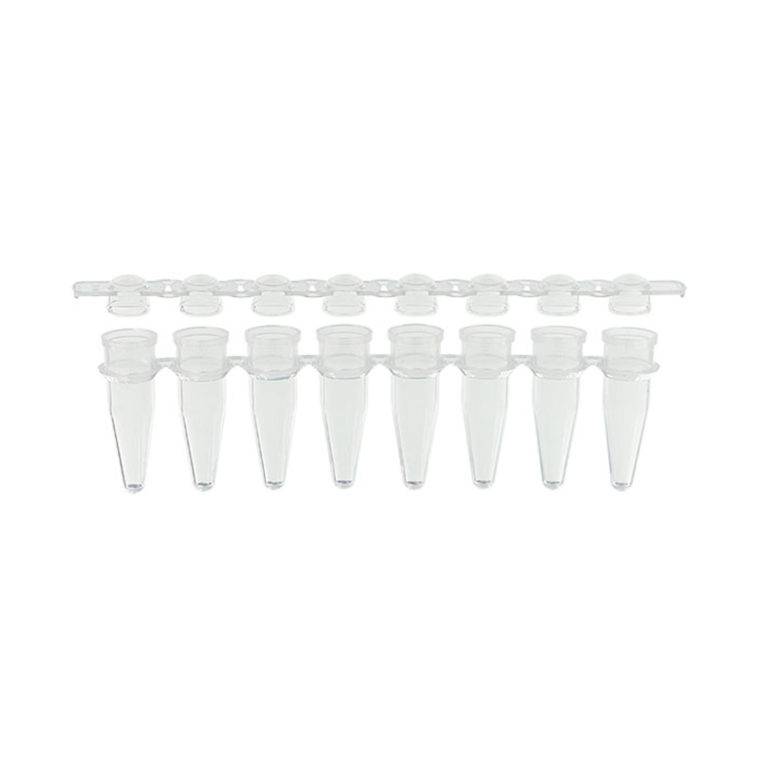

Minimize evaporation especially when used with small sample volumes, in thermal cyclers with heated lids, or older units with our standard profile, 0.2ml well volume, 8-PCR tube and domed cap strips. Precision molded using only ultra-clear, virgin, medical grade polypropylene for clarity and sample visualization. When used together they create a secure and proper fit for precise thermal transfer with minimal evaporation.
ILP domed cap strips are designed to assist condensate to re-enter the reaction mixture and in heat transfer. Caps have longer cap flanges that produce a tight fit and reduce sample evaporation. Tubes and caps are regularly quality tested for evaporation rates and must exhibit less than 3% sample loss.
Individual tube volumes:
Overall Volume: 300 µl
Working Volume: <200 µl
Durable bands between the wells keep these strips from breaking apart inadvertently but are easily cut with scissors into smaller sections or individual tubes. Cap strips have large end tabs for easy removal and are labeled for orientation. They are easy to apply and remove without breaking.
Recommended for low to medium throughput applications, these tubes are designed to fit all standard 0.2mL block thermal cyclers. Their thin and consistent wall thickness optimizes heat transfer to maximize yield.
Packaged separately in resealable bags
All ILP PCR products are non-sterile and certified to be free of detectable RNase, DNases, DNA, and pyrogen contamination.
Make Model Invitrogen DynaMag-96 Bottom (12332D) Invitrogen DynaMag-96 Side (12331D) Qinstruments Bioshake IQ (1808-1064) Qinstruments Bioshake XP (1808-1064) Thermo Mini Amp Thermo Mini Amp Plus
|General Features||Product Type: PCR Tubes & Caps|
Number of Wells: 8
Singular or 8-Strip: 8-strip
Cap Type: Domed
Well Shape Top: Round
Well Shape Bottom: Conical – U
Surface Treatment: None
|Volumes & Dimensions||Overall Height: 20.80mm|
Well Depth: 20.15mm
Wall Thickness (Average): .29mm
Well Diameter Top: 5.40mm
Top Length: 76.9mm
Max Volume: 240ul
Working Volume: 300ul
|Performance||Autoclavable: 121C at 15 psi, 15 min.|
Max Temperature: 120C
Min Temperature: -80C
|Shipping & Handling||Quantity: 120 Strips/Pack, 5 Packs/Case|
Case Dimensions (in.): 12.5 x 10.5 x 7.5
