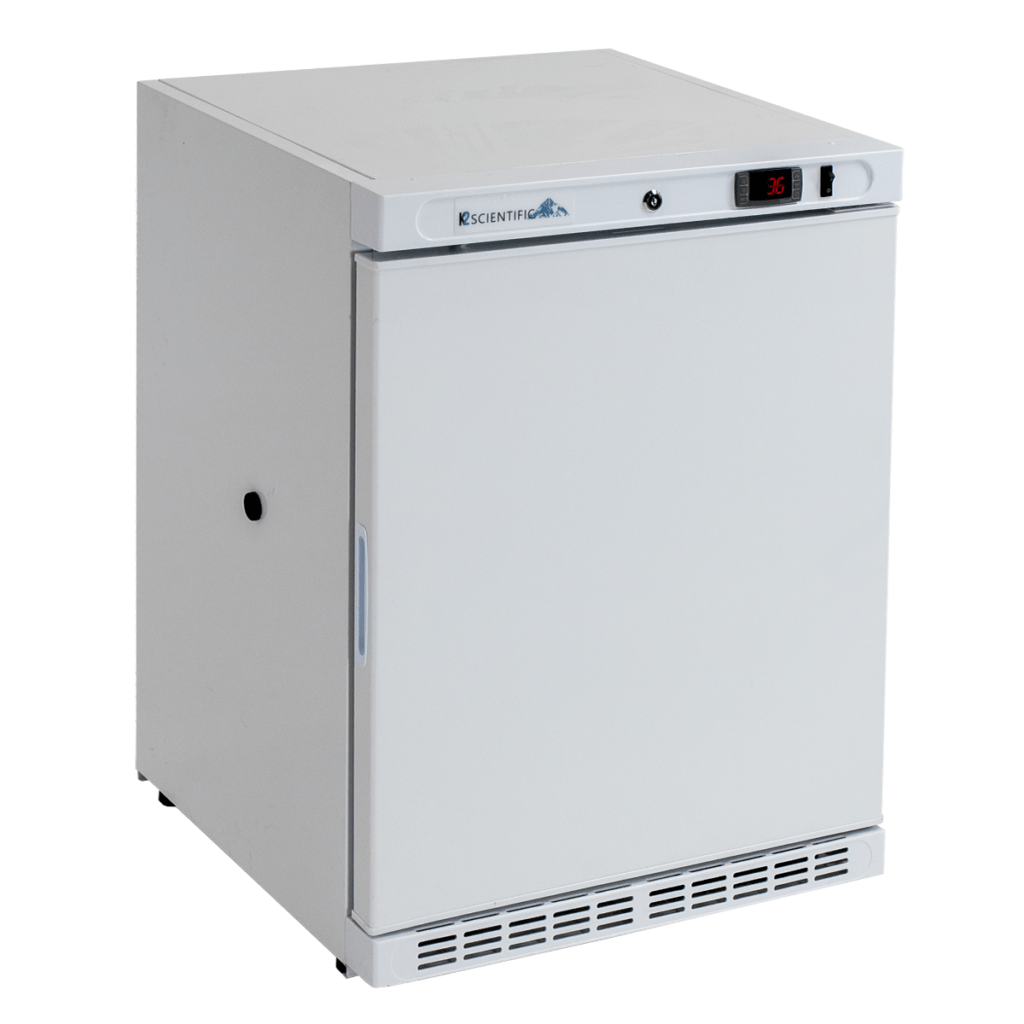

4 CU. FT. Medical / Lab / Vaccine Undercounter Solid Door Refrigerator
description
This freestanding 4 cu. ft. under counter laboratory refrigerator is ideal for demanding clinical, commercial, and life science applications. Our small laboratory refrigerator has an intelligent microprocessor control with a state-of-the-art digital display. It also includes a temperature stability of ±2°C from the set point and variable (cycle) defrost for your convenience.
The 4 cu. ft. under counter laboratory refrigerator is environmentally friendly and fully compliant with the most up-to-date EPA/SNAP/UL regulations.
| Model# |
K204SDR |
|---|---|
| Storage Volume |
4 cu ft |
| Performance Characteristics | |
| Exterior (W x D x H) |
23.75” x 20.9” x 31.7” |
| Interior (W x D x H) |
19.5” x 15” x 23” |
| Insulation |
CFC-free, high density insulation |
| Doors |
1 |
| Door Perimeter Heater |
Standard |
| Shelves |
3 |
| Access Port |
0.5” Probe port |
| Leveling Legs |
Standard |
| Unit Weight |
113 lbs |
| Perfomance | |
| Peak Variance* |
4.73°C |
| Stability |
+ / – 2°C |
| Energy Consumption (KWhr/day)* |
1.15 |
| Adjustable Set Point Range |
2°C to 8°C |
| Factory Set Point |
+ 4°C |
| Electrical Power/ Current |
120v 60 Hz |
| Building Supply Rating |
15 Amp |
| Power Plug/Cord Length |
NEMA 5-15 / 10ft cord |
| VFC Compliant |
Yes |
| Energy Star |
Yes |
| Indoor/Outdoor Use |
Indoor use only |
| Application Environment |
Non-corrosive, non-flammable, non-explosive |
| Ambient Operating Temp. (°C) |
25°C to 32°C |
| Refrigeration | |
| Refrigeration System |
Vapor compression system, forced-air |
| Compressor |
Hermetically sealed compressor |
| Condenser Type |
Foamed in |
| Expansion Device |
Capillary tube |
| Evaporator Type |
Forced Air |
| Defrost |
Variable (cycle) |
| Refrigerant |
R600a (Isobutane)- EPA, SNAP compliant |
| Controller/System Configuration | |
| User Interface |
Microprocessor with digital display |
| Power Switch |
On/Off |
| Controller Type |
Digital controller |
| Security |
Lockable doors |
| Control Sensor |
NTC probe |
| Remote Alarm Terminals |
Standard |
| High/Low Alarms |
Standard |
| Warranty |
2-year full replacement |
| *Data according to EPA Energy Star | |
